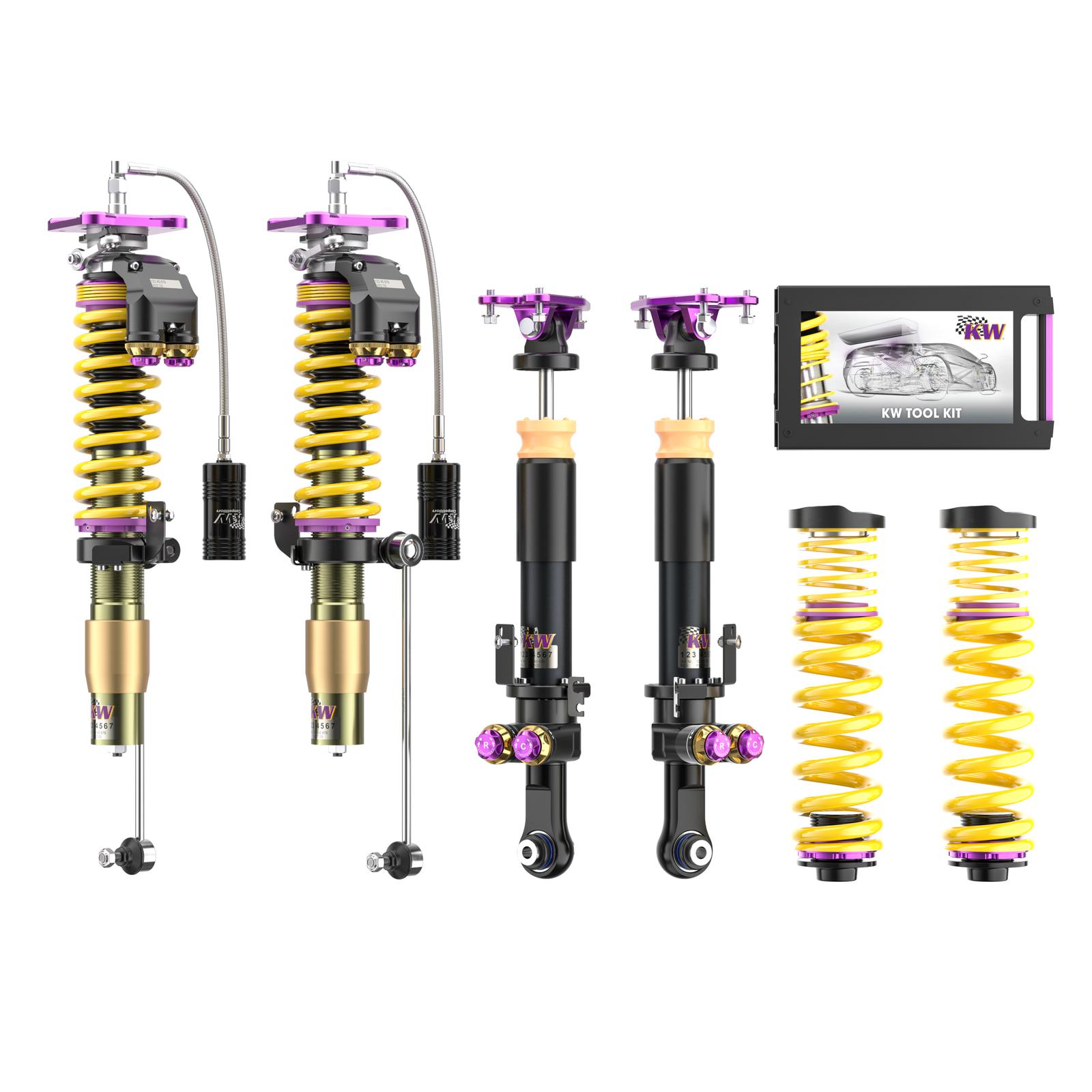

KW V5 CLUBSPORT KIT - 3090169006
$10,989.00
KW V5 CLUBSPORT KIT - 3090169006
$10,989.00
Part Number:
#3090169006
Ships in 6-8 weeks
Your KW V5 Clubsport: All Features At A Glance
Customized lowering
|
.png)
Adjustable compression (Highspeed)
|
Vehicle suspended reservoir
|
Adjustable rebound (low speed)
|
Twin tube solid piston
|
Composite spring seat
|
Adjustable rebound (highspeed)
|
Unibal support bearing
|
Trapezoidal thread
|
Adjustable compression stage (low speed)
|
track performance
A high value stands for maximum racetrack performance with precise handling, high cornering speed and direct feedback
comfort
A high value stands for particularly well-balanced suspension and effective damping of bumps and noise.
handling
The higher the value, the more precise, stable and dynamic the vehicle reacts to steering commands and bumps in the road.
height adjustment
Minimal: +5 - 20 mm
Moderat: 15 - 45 mm
Maximum: 35 - 80 mm
maximum
everyday use
The higher the value, the more unrestricted and comfortable the vehicle can be used in everyday life
- including ground clearance, driving dynamics and parts certificates.
Race track performance, for the road
- Adjustable compression and rebound damping at both low and high speeds
- Same features as the KW V5 suspension - perfected for the race track
- New name: This suspension used to be called KW Clubsport 4-way
Fitment Notes
View Fitment NotesAbout this product
Fitment Notes
View Fitment NotesSpecs
| Weight | Length | Width | Height | UPC Code |
| 53.4 lb | 30" | 18" | 6" | 840134915234 |
Installation Instructions
V5 Clubsport Technology In Detail
The compression damping is adjustable with 18 clicks in low speed and 18 clicks in high speed. The compression stage is already ideally set from factory.
The blow-off characteristic ensures optimum support for the vehicle body and guarantees a constant connection to the road.
The high-speed rebound stage influences how quickly the suspension spring relaxes back to its initial position.
Depending on the vehicle type, aluminum Unibal top mounts offer scalable camber adjustment and optional caster adjustment.
